Hispeedido IPS Laminated V5 Screen for Gameboy Advance 720x480

Hispeedido Game boy Advance GBA IPS Laminated LCD V5 – Laminated Drop-In 720x480 Backlit Display

To install the IPS LCD, modification to the original shell is required.

Product Features:

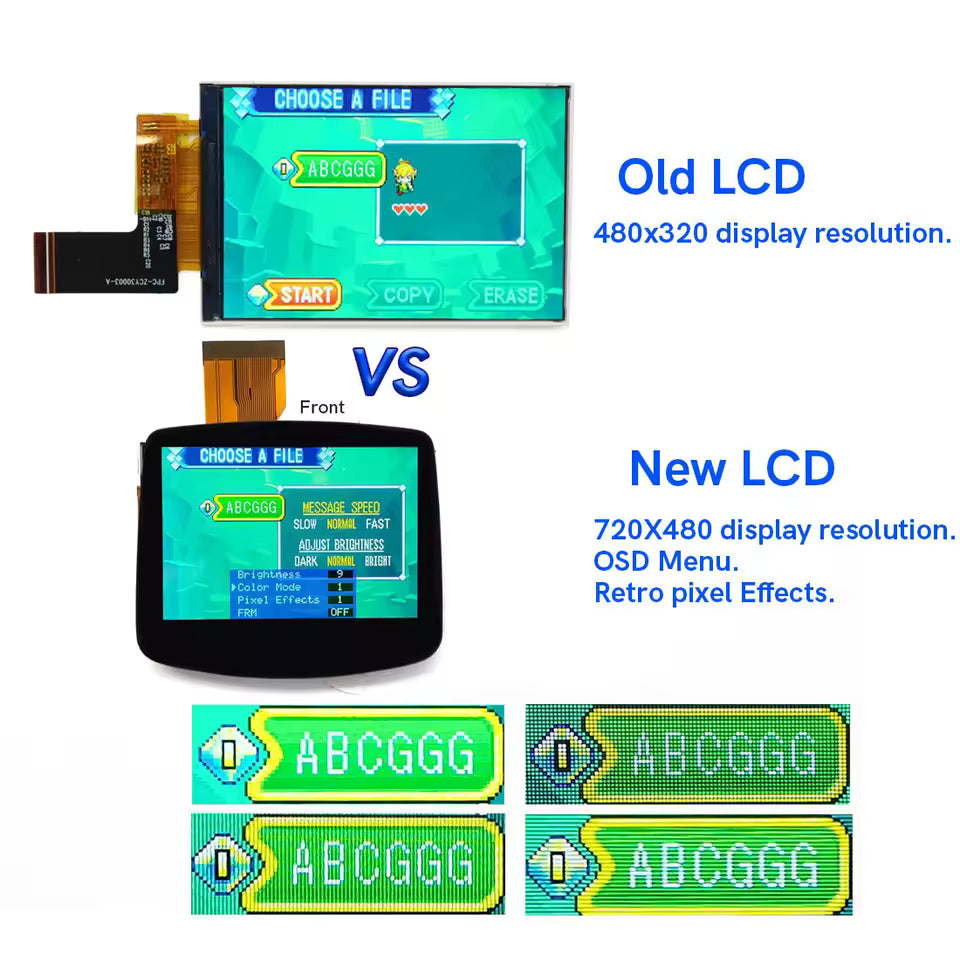

• 720x480 resolution with 9:1 pixel scaling for a sharp, distortion-free image.

• Laminated Glass Screen (no dust between screen and LCD)

• Built-In OSD Menu: On-screen display for adjusting settings.

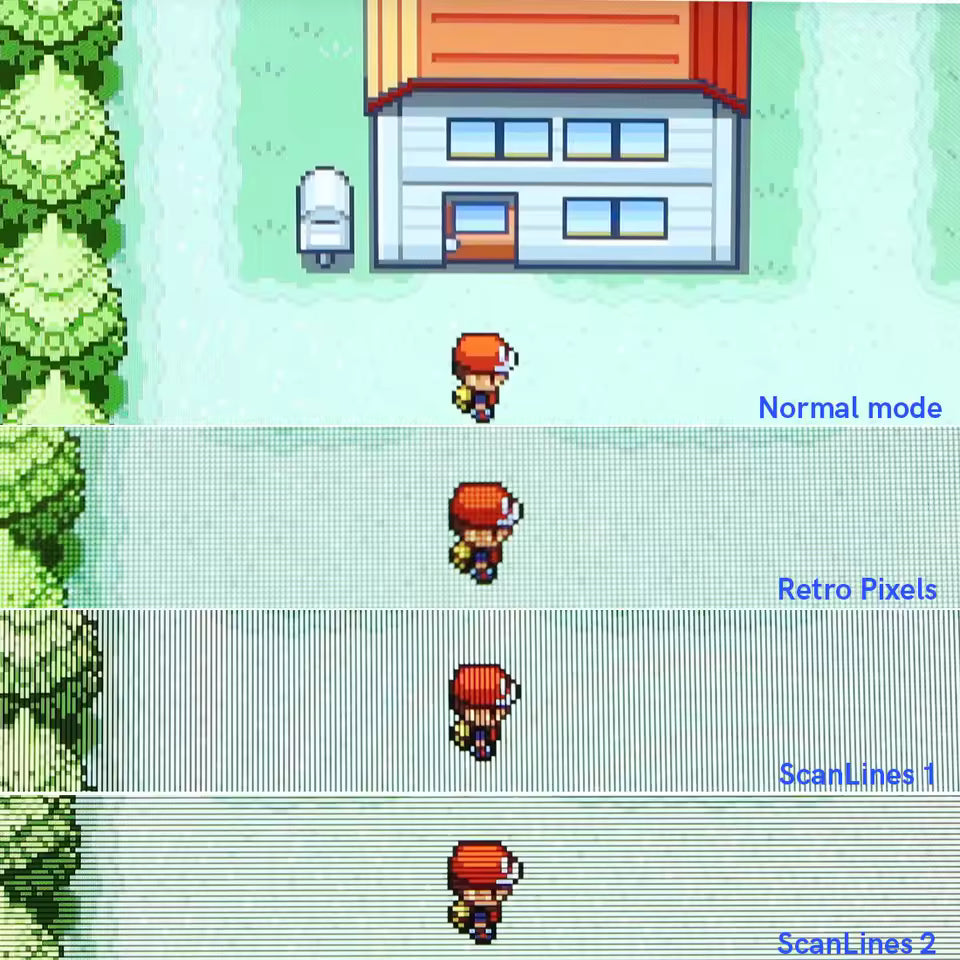

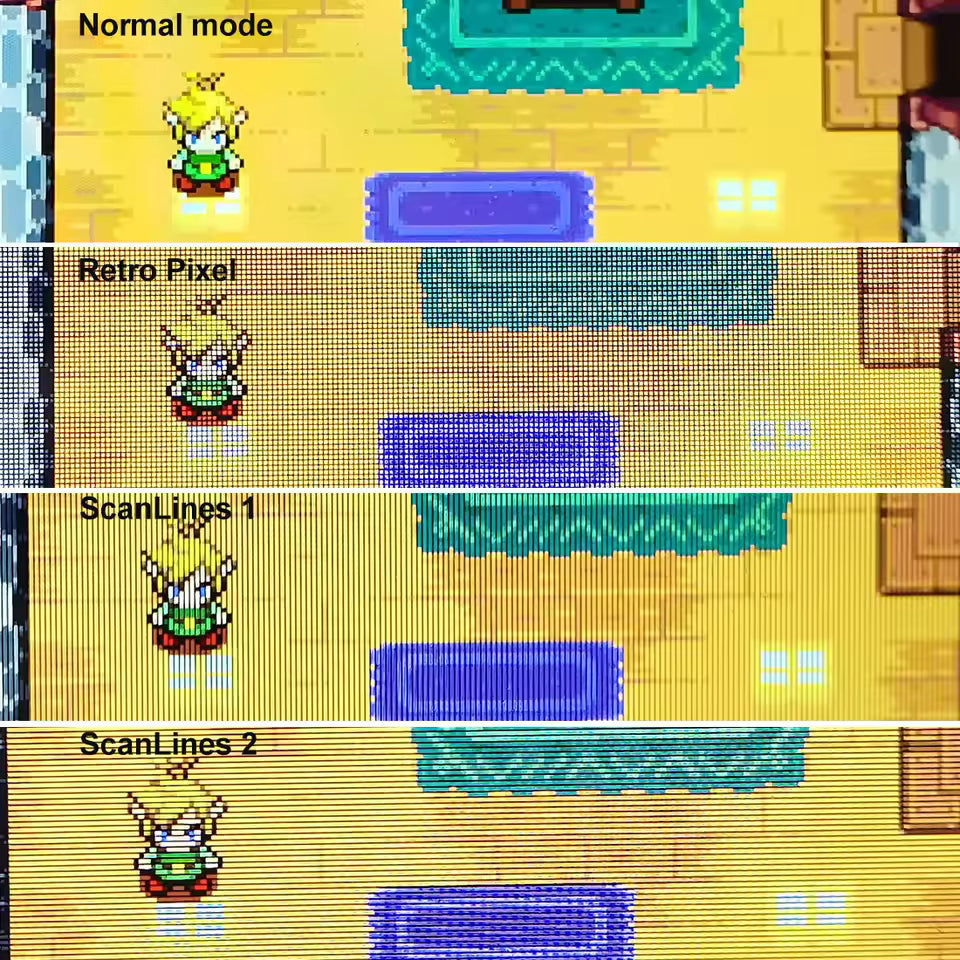

• Retro Pixel Effects: Normal, Retro Pixel (similar to original AGS-101), Scanline 1, Scanline 2
• Adjustable Brightness: 15 levels of brightness control.
• Multiple Color Modes: 8 unique color display options.
• FRM (Frame Blending) Function: Can be toggled ON/OFF. Helps improve visuals in certain rare games. Default setting is OFF.
• Touch Controls: Touch the screen to change brightness and color modes.


OSD Menu Control (Optional – Requires Soldering 3 Wires):

• Activate OSD Menu: Hold Select + L + R for 1 second, then release.
• Navigate: Press Select to cycle through menu options.
• Adjust: Use L or R to change the selected setting.
• If you do not wish to use the OSD menu, soldering is not required.

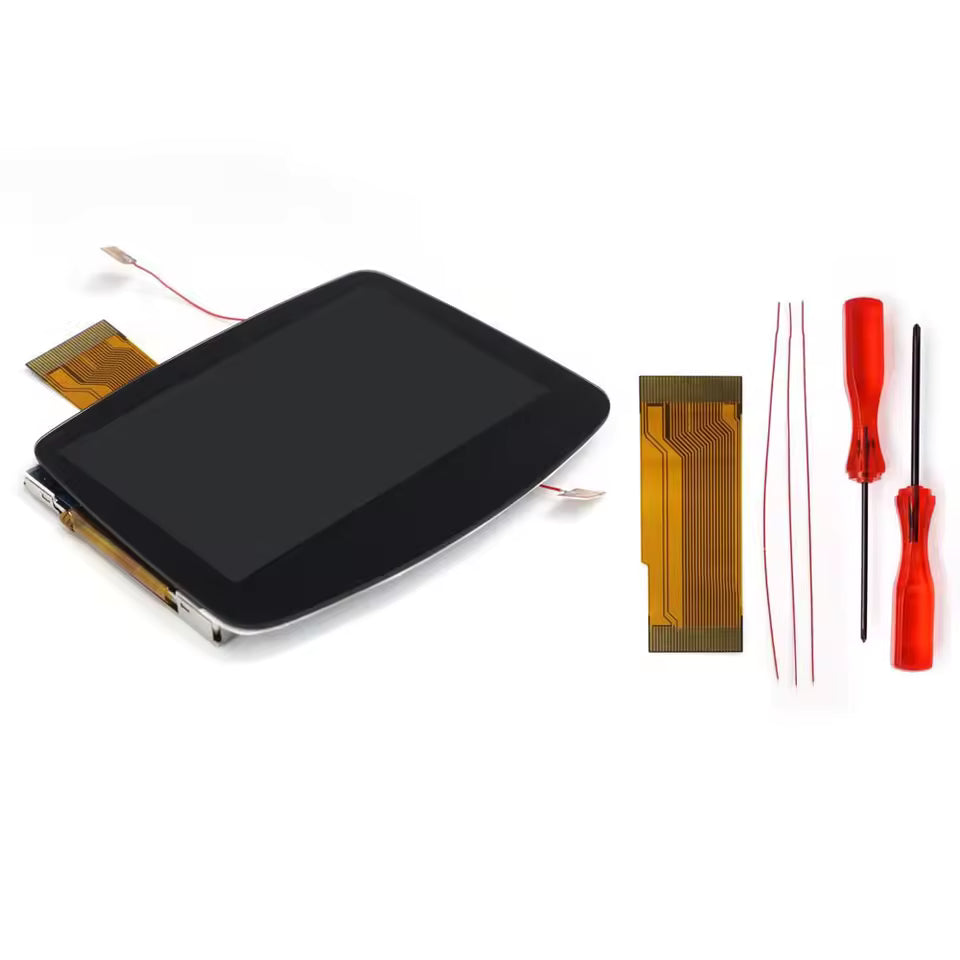

1. What's included:
   • 1 x IPS LCD Screen
   • 2 x Ribbon Cables (32pin and 40pin)
   • 3 x Wires
